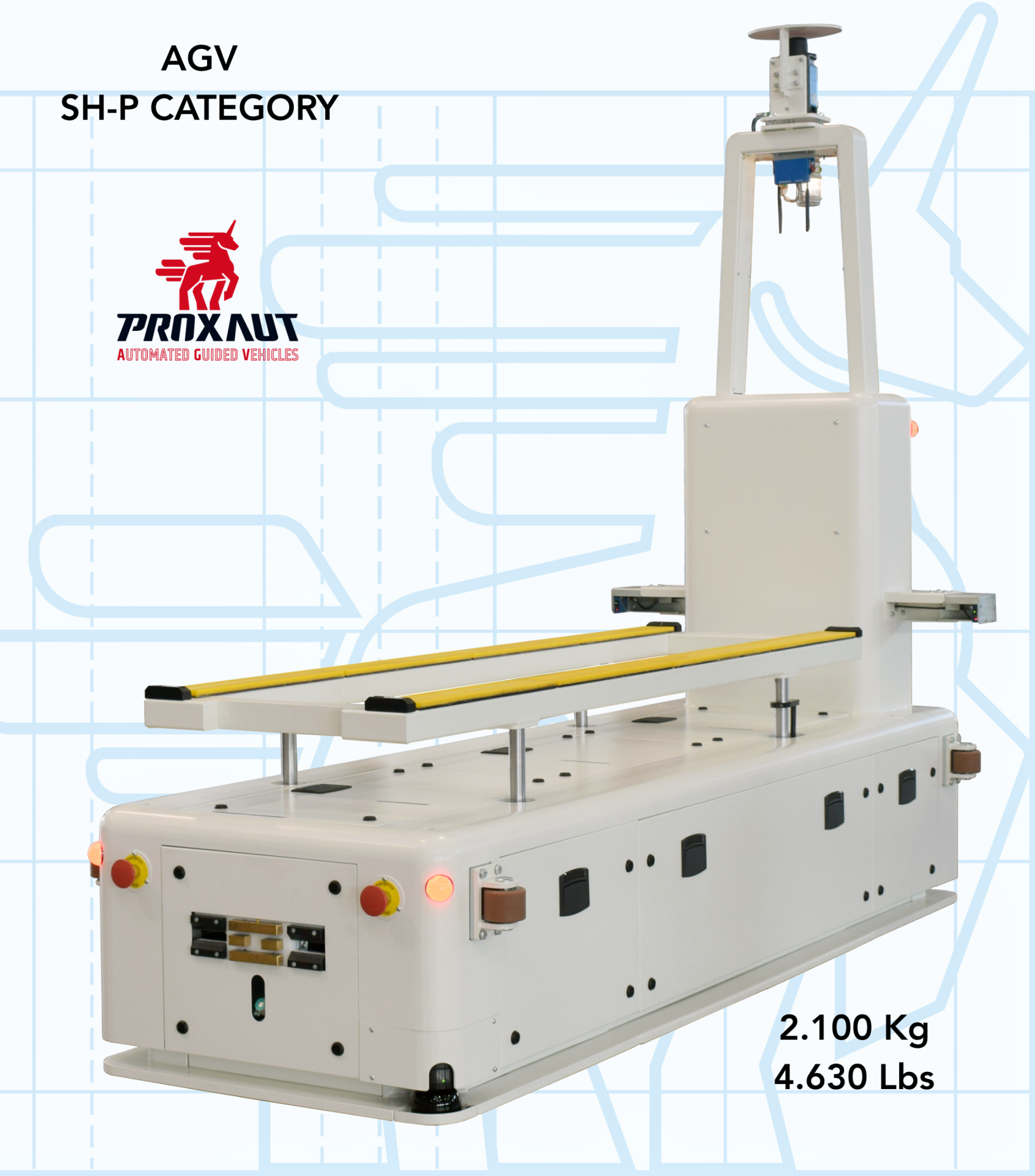

AGV SH-P 2100 Kg with lifting bars for trays

AGV SH-P 2100 Kg with lifting bars for trays

Category: SH Shuttle Series - Loaders

Shuttle AGV with lifting platform for racks

Maximum weight: 3,000 Kg (6,614 Lbs)

The AGV has been specifically designed to be integrated into a food processing line to transport trays and molds of various sizes, remaining in a predefined range.

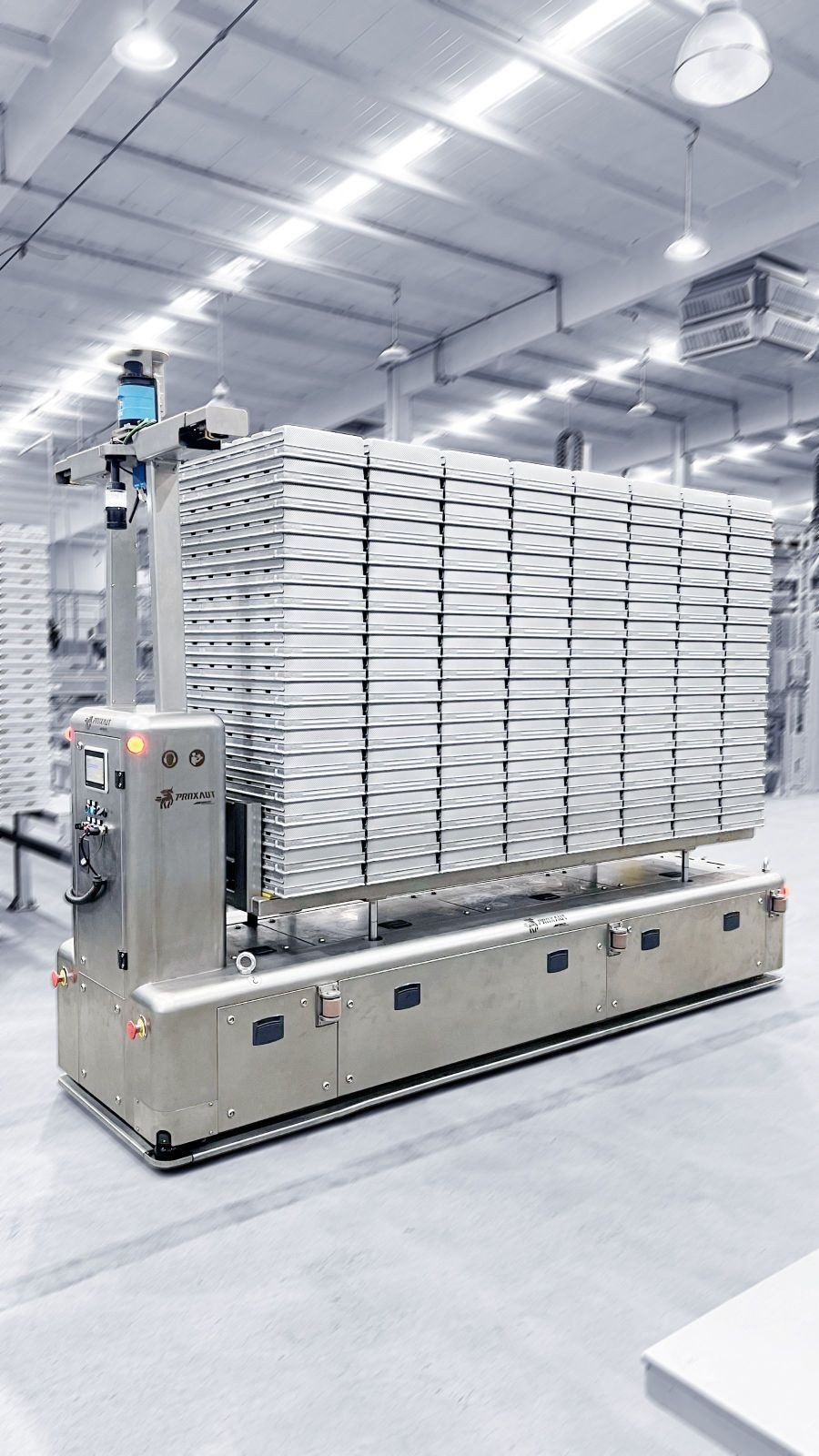

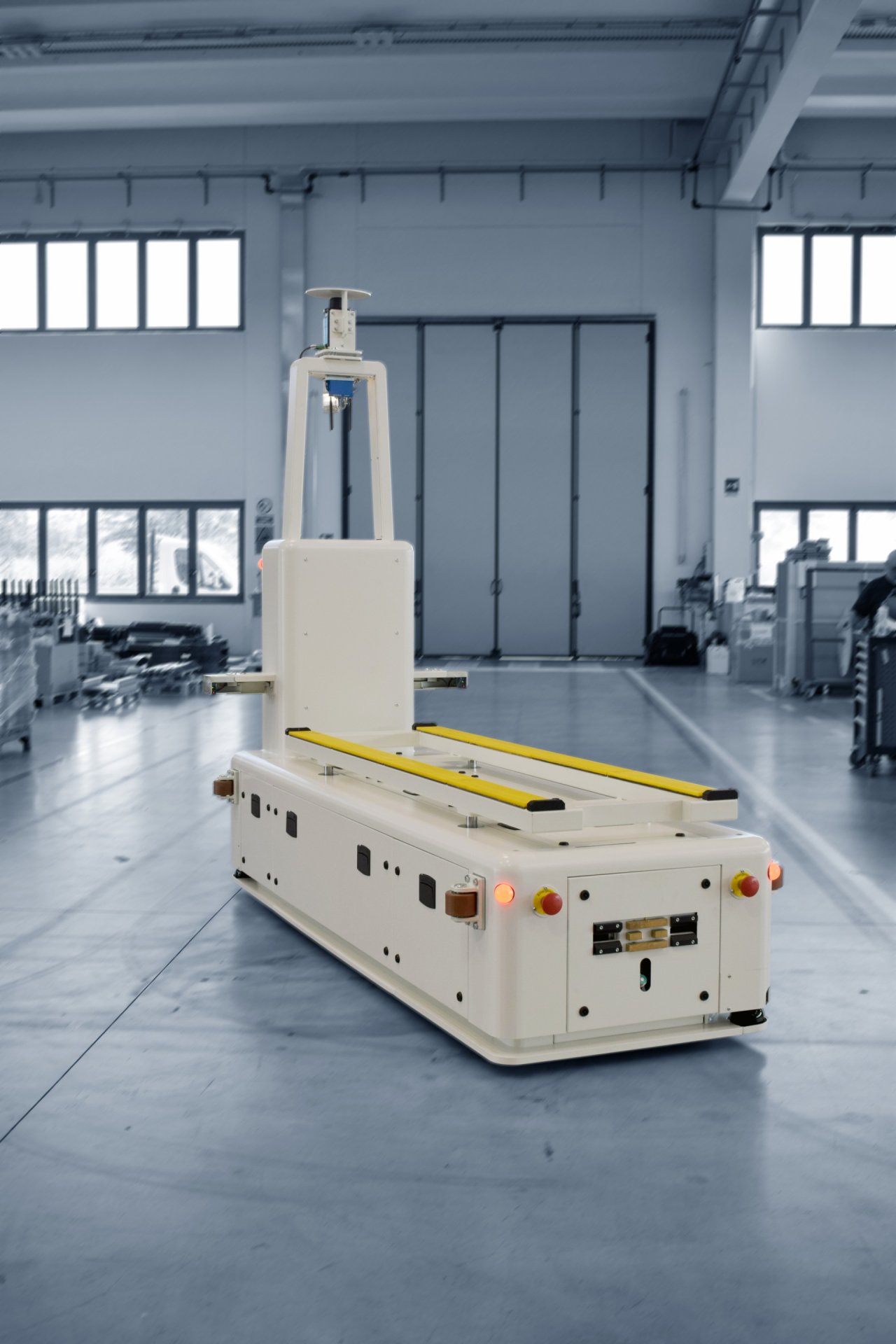

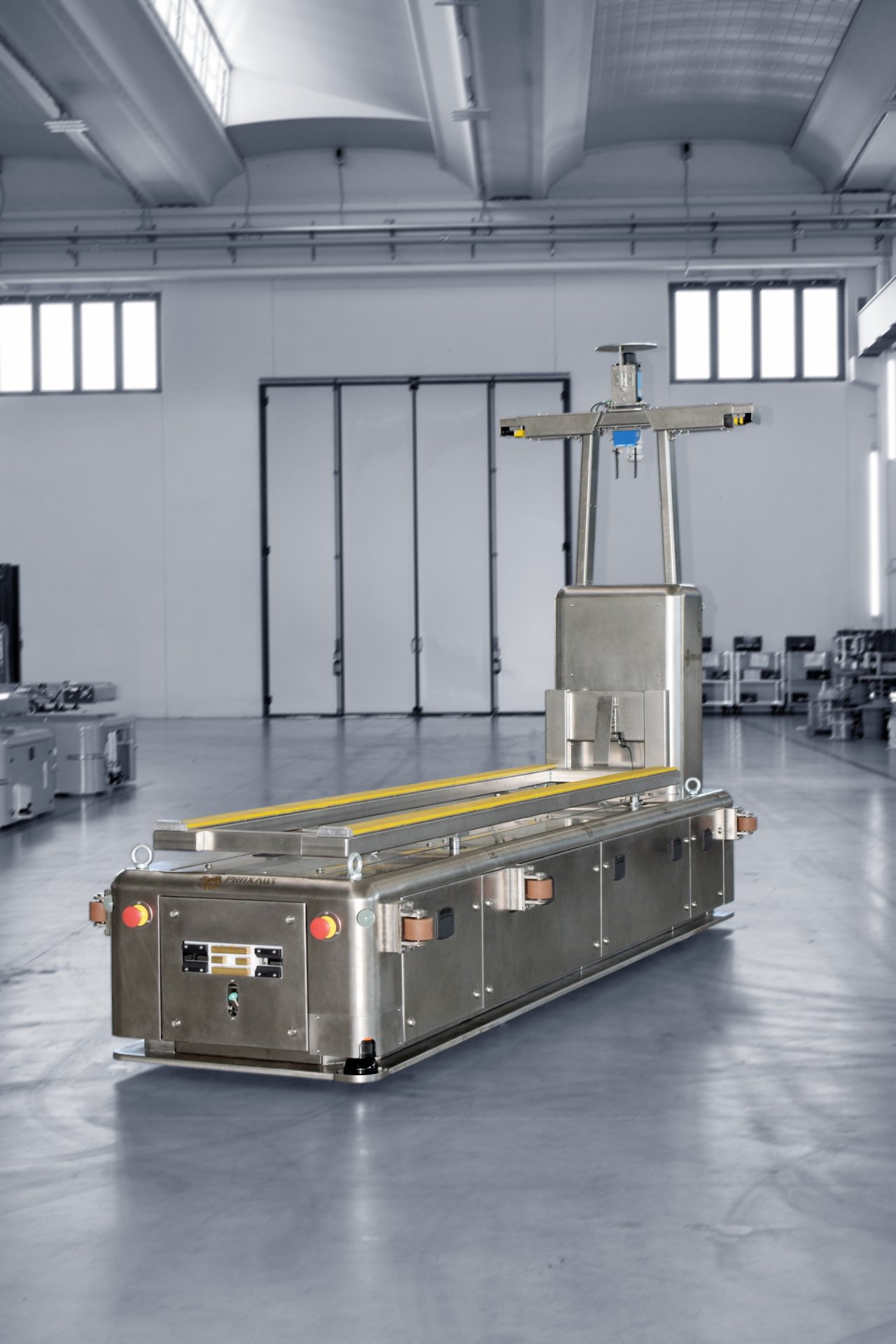

This shuttle vehicle has been manufactured both in paint and in AISI 404 stainless steel depending on the final use. It’s ideal for picking up, transporting and positioning trays in stacks of 25 pieces each, with a maximum stack height of 1260 mm.

The autonomous shuttle has been specifically designed to move underneath the loading unit (UDC) and, once the lifting platform has been raised by over 800 mm, to transfer the load. The bar-type lifting system has been designed to ensure load stability during transport and is equipped with profile control photocells that monitor the position of the loading unit.

FAQ

Why choose an AGV shuttle for transporting trays and moulds??

Reduction of manpower and repetitive operating movements
Connection between process machines and robots of different brands
Optimization of loading on trolleys and racks to guarantee better profits
Use of stainless steel to make the AGV ideal for operating within the production process in HCCP environments (Hazard analysis and Critical Control Points).
