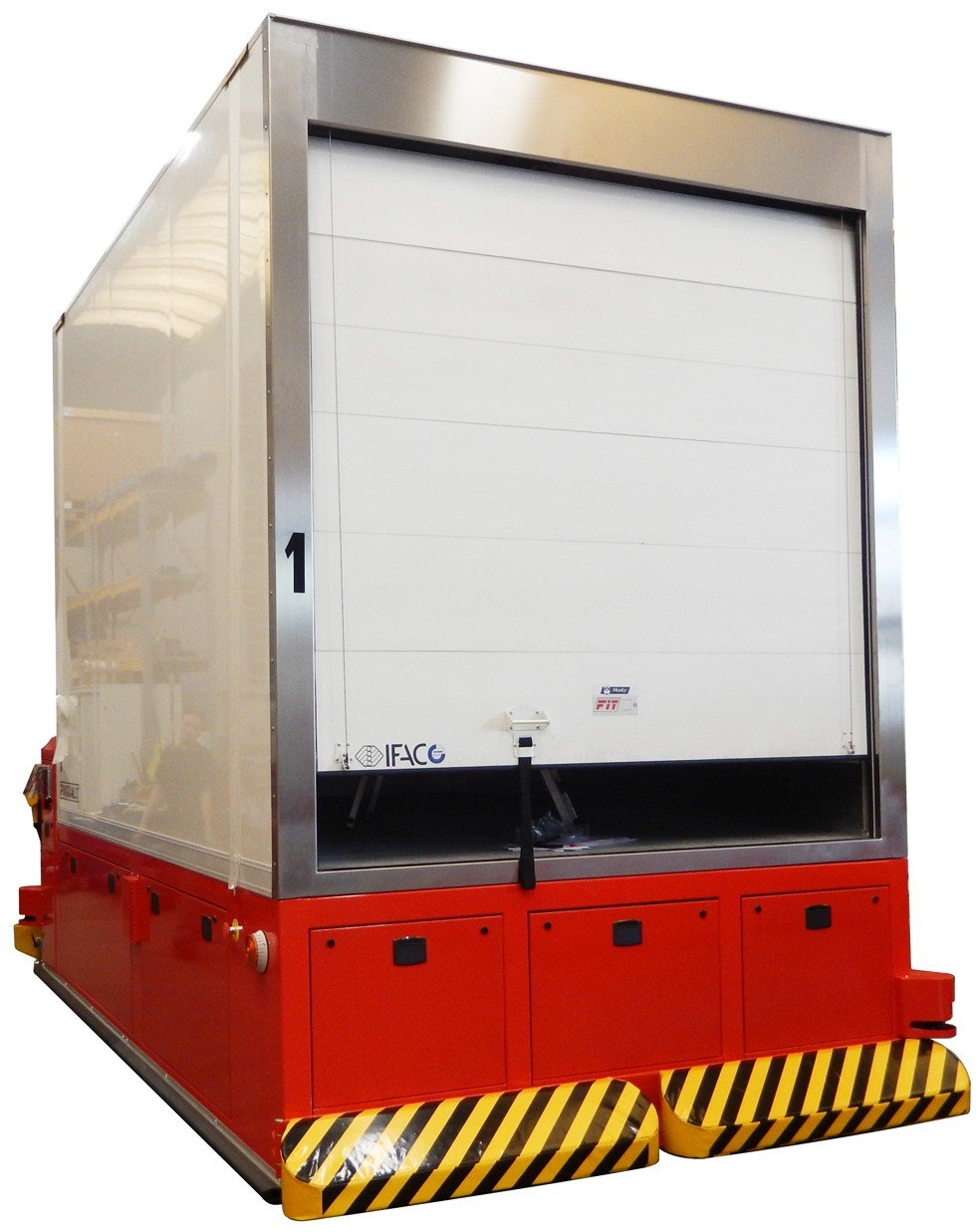

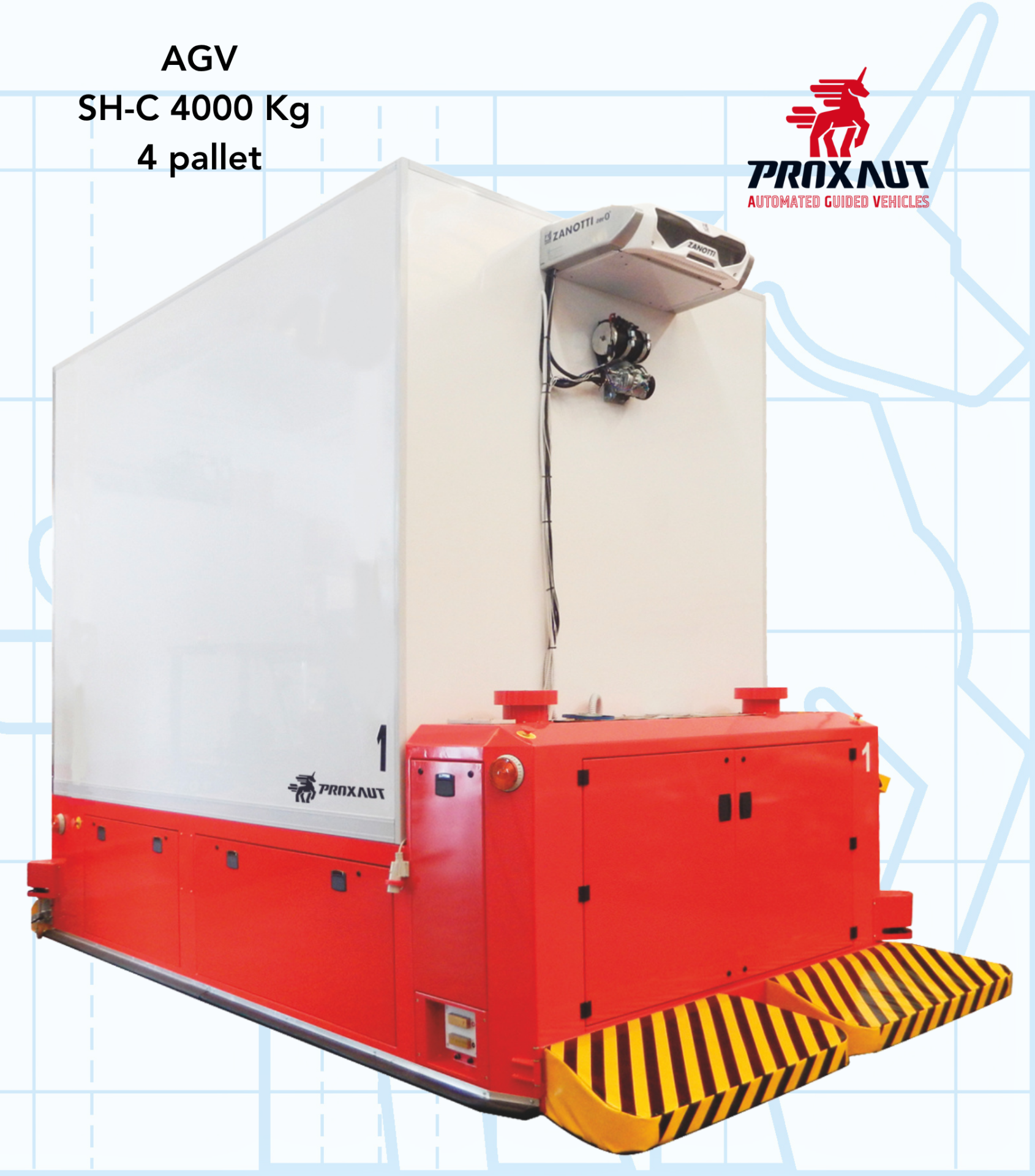

AGV SH Outdoor 4000 Kg

Shuttle featuring a powered roller conveyor system for external use suitable to transport perishable goods to be refrigerated.



Maximum load unit (LU) weight ground level: 4,000 Kg (8,818 Lbs).

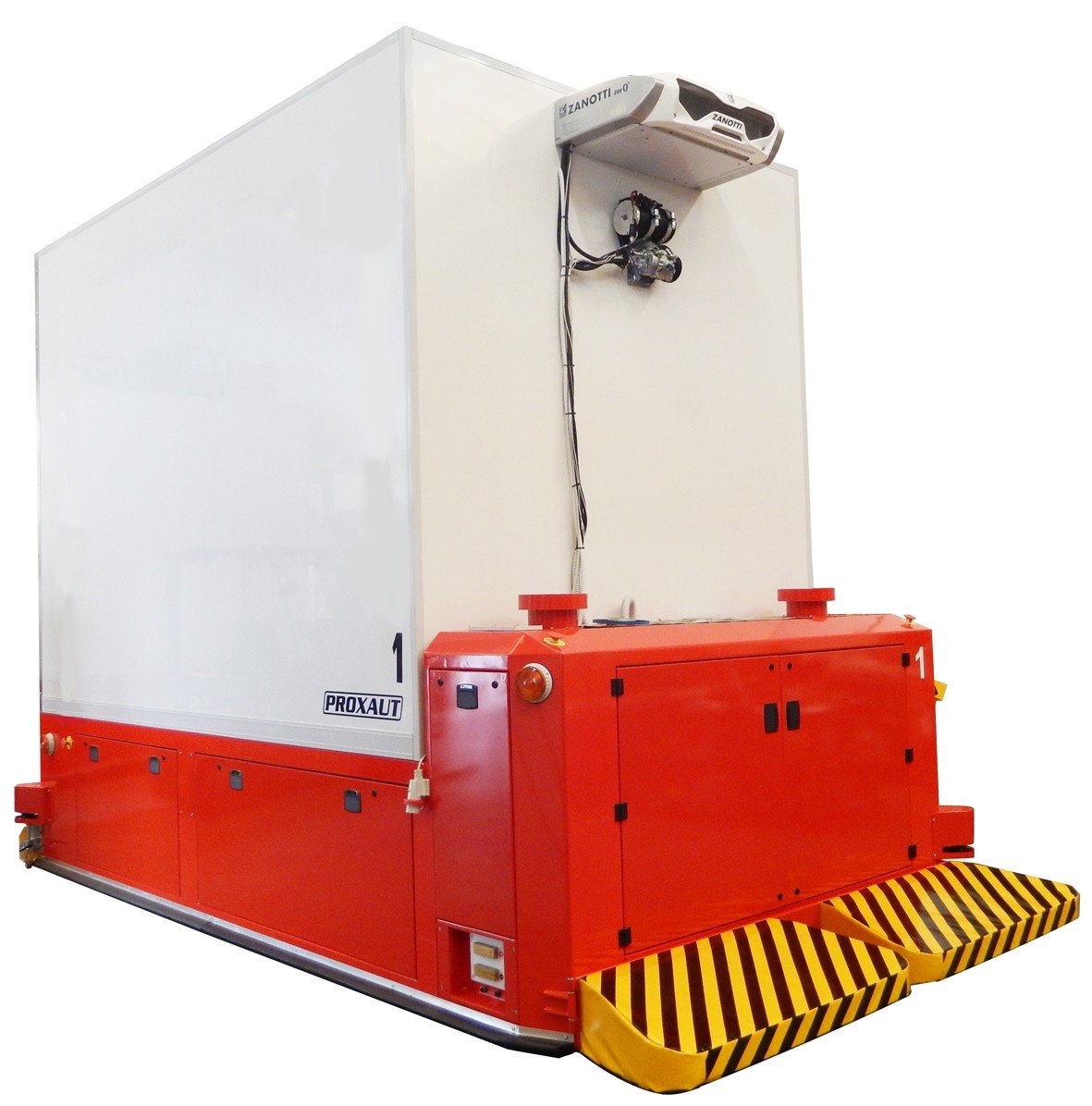

AGV equipped with a refrigerated body and cooling system to allow the transport of perishable goods such as fruit and vegetables also out of the closed production areas.

The AGV vehicle consists of a refrigerated cell inside which pallets of food products are placed. During handling operations, the refrigerated cell is powered by the vehicle’s batteries, while when the vehicle is stationary and/or switched off, power to the refrigerated cell is ensured by connecting a plug to the mains electricity supply by an operator.
The anti-collision safety system, consisting of lateral bumpers, allows the AGV to stop immediately in the event of contact with an obstacle/object/person.

This innovative AGV meets the highest standards of efficiency, quality and reliability.





FAQ





Why is it important for an AGV to be refrigerated and for the temperature inside it to remain constant and controlled?



  • The AGV must guarantee compliance with the cold chain, and this is only possible thanks to its refrigerated body structure and the use of a refrigeration system.





Is Proxaut’s AGV efficient even in fog and low-visibility conditions?

  • Absolutely. The wire-guided navigation system is the ideal solution even in poor visibility conditions (sun glare, fog, mist, etc.).
    Thanks to its advanced safety systems, the AGV constantly detects obstacles even in low-visibility conditions, ensuring an immediate stop in the event of danger.

 Navigazione Filoguida

Discover our wire-guided system: https://www.proxaut.com/en/technology/driving-systems
